PoolCop Genesis Menu Instructions for Common Functions

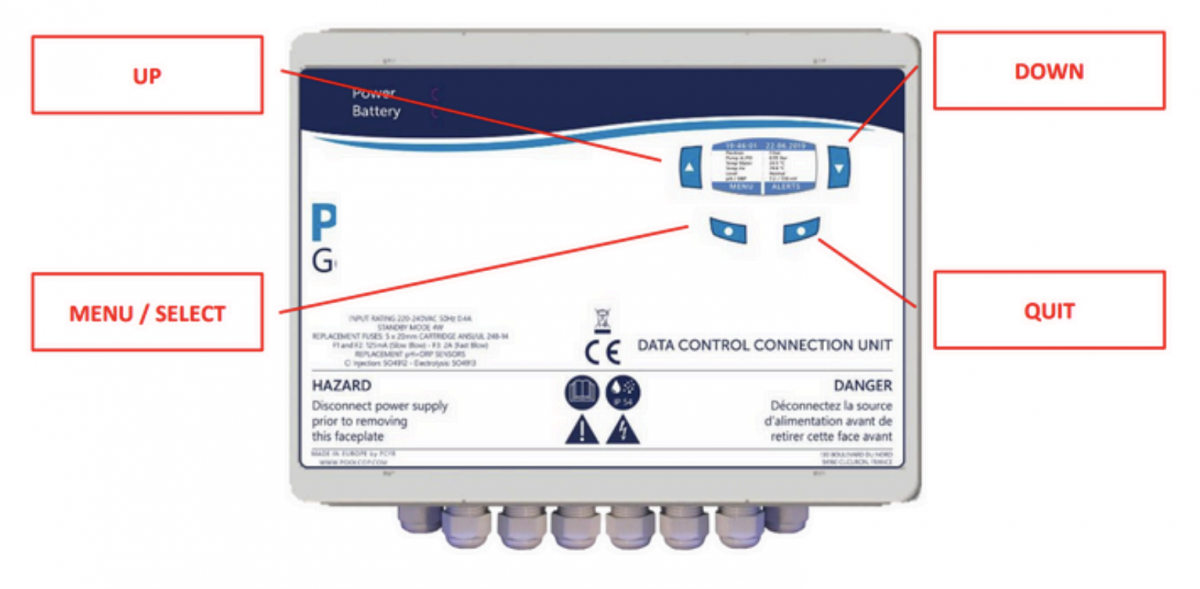

KeyPad and Display Layout

Review the steps below and learn how to use the most common functions on the PoolCop Genesis Unit.

  1. Calibrate pH
  2. Manually Activate pH Feeder
  3. Manually Activate ORP Feeder
  4. Change pH Setpoint
  5. Change ORP Setpoint
  6. Obtain Network ID

Calibrate pH

  1. Menu
  2. Maintenance
  3. Calib pH
  4. press UP to increase
  5. press DOWN to decrease
  6. press SELECT to save

Manually Activate pH Feeder

  1. Menu
  2. Water and Treatment
  3. pH Control
  4. Priming (will show as OFF)
  5. Press SELECT and “OFF” will blink
  6. Press UP and “ON” will now blink and pH, feeder will turn on
  7. You should hear a click sound
  8. Press DOWN to turn off

NOTE: Make sure pH is showing as installed and is not set to read only.

Manually Activate ORP Feeder

  1. Menu
  2. Water and Treatment
    ORP Control
  3. Priming (will show as OFF)
  4. Press SELECT and “OFF” will blink
  5. Press UP and “ON” will now blink and ORP, feeder will turn on
  6. You should hear a click sound
  7. Press DOWN to turn off

NOTE: Make sure ORP is showing as installed and is not set to read only.

Change pH Setpoint

  1. Menu
  2. Water and Treatment
  3. pH Control
  4. Setpoint
  5. Press SELECT
  6. Press UP to raise, Press DOWN to decrease
  7. Press SELECT to save

Change ORP Setpoint

  1. Menu
  2. Water and Treatment
  3. ORP Control
  4. Setpoint
  5. Press SELECT
  6. Press UP to raise, Press DOWN to decrease
  7. Press SELECT to save

Obtain Network ID

  1. Menu
  2. Configuration
  3. Factory Settings
  4. Network

NOTE: Take a picture of the screen.  This will be needed to connect the device to the cloud.
