PoolCop commercial automation

PoolCop Genesis.

Commercial pool automation, sensing, chemical control and connectivity — a continuous connection to the equipment room.

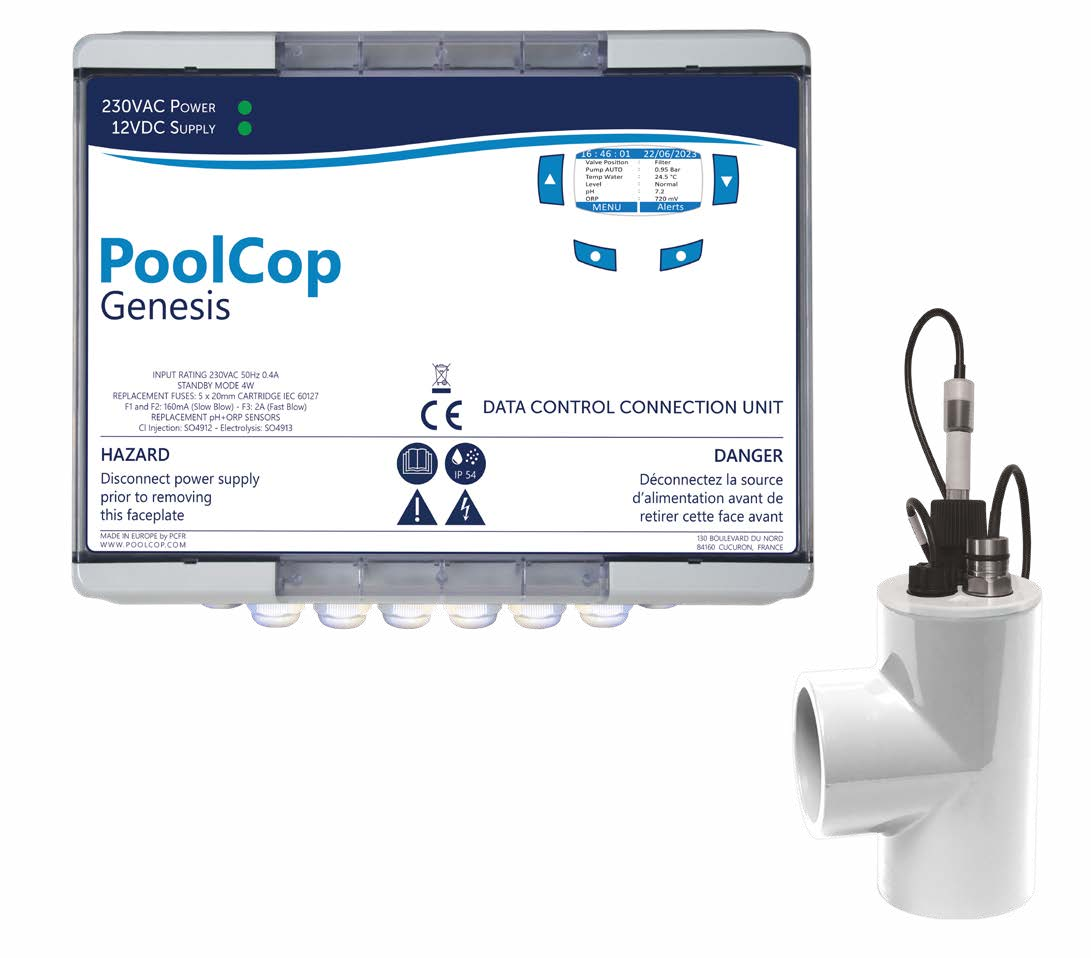

PoolCop Genesis data control and communication unit with flow cell

Reliable Automation Starts at the Pool.

For PSI to provide useful operational intelligence, it needs reliable information from the physical pool.

PoolCop Genesis provides commercial pool automation, sensing, chemical control and connectivity — creating a continuous connection to the equipment room. When connected with PSI, that information becomes part of a much broader operational view.

  • 24/7 Monitoring — continuously monitor key pool and equipment conditions.
  • Automated Chemical Control — manage chemical dosing based on configured operating parameters.
  • Remote Connectivity — stay connected without being in the equipment room.
  • Expandable Control — connect additional equipment, sensors and operational inputs.
  • Water-Level Integration — connect water-level automation with PSI water intelligence.
PoolCop provides the connection and control at the physical pool. Connected PoolCop data can be used by PSI to provide broader operational intelligence.

Chemical control, connectivity and water level

Chemical controlA 2-in-1 pH+ORP sensor with floating reference manages disinfection and pH; dosing runs on configured set points, with dosing time visible to PSI poll by poll.
ConnectivityDisplay and control on the unit, through web interfaces and PoolCop Cloud; an optional cellular router module keeps equipment rooms connected without site Wi-Fi.
Water-level integrationA water-level sensor on a PoolCop input requests water; an auxiliary output opens the fill solenoid. PSI measures every fill and puts the water use in context.
Expandable control8 programmable relays and 2 programmable inputs run filtration, valves, heating, lighting, water features and more.

Hardware details are taken from PoolCop's Genesis product information sheet. Ask us about the Cellular Router Module and the Chlorine (FAC) sensor option for your installation.

Technical specifications — PoolCop Genesis

ReferenceGNA30AA-D
Main power supply, consumption110–230 V a.c. / 50 Hz, 0.4 A
Pack contentsData control and communication unit (DCCU) with 8 relays and 2 inputs · Flow cell with water pressure and water temperature sensors, and housing for a 2-in-1 pH+ORP sensor (sensor sold separately) · Air temperature sensor · Accessory pack
DimensionsDCCU: 375 × 120 × 285 mm — 4.3 kg
Guarantee24 months
Display and controlsOn the DCCU, web interfaces and PoolCop Cloud
DCCU protectionIP54
Operating temperature−5 °C to +45 °C
pH and ORP sensors“Floating reference” 2-in-1 sensor for chlorine injection or bromine (fits the flow cell vertically or horizontally)
Relays and inputs8 programmable relays (2 preprogrammed, 6 multifunction auxiliaries) · 2 programmable inputs
CompatibilityOpen system compatible with third-party equipment; all filter types; variable-speed pumps and frequency inverters; third-party automatic valves; all pool sizes and flow rates

Source: PoolCop Genesis product information sheet (PCFR). Download the Genesis spec sheet (PDF) · Quick guide (PDF)
